TL725D IP67 Waterproof MEMS Angle Sensor with 0.01deg Resolution for Agricultural Vehicle Navigation

Model Number : TL725-232

Place of Origin : Guangdong, China

Brand Name : Rion

Packaging Details : 1pcs/box with sponge inside, 100pcs/ctn

Supply Ability : 3000 Piece/Pieces per Month

Price : $60.00/Pieces >=1 Pieces

Certification : CE, ISO

MOQ : 1

Payment Terms : T/T,Paypal

Delivery Time : 7 days for samples

Usage : Position Sensor

Output : Digital Sensor

Item : Gyro heading sensor

Dimension : 62*54*20mm

Weight : 140g

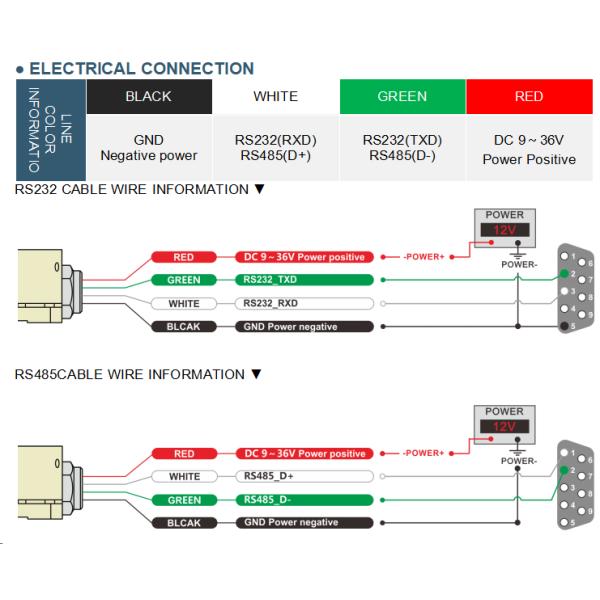

Connector : RS232/RS485

Power supply : 9~36v

MTBF : >50000 hours/times

Zero bias instability of gyro : 4.0deg/h

resolution : 0.01deg

water proof : IP67

Port : Shenzhen

Contact Now

TL725D IP67 MEMS Angle Sensor For Digital Farming Machinery
High-Performance IMU Gyroscope for Agricultural Vehicle Navigation
The TL725D is a high-precision gyroscope IMU specifically engineered for automatic navigation of agricultural vehicles. Featuring an industrial-grade three-axis gyroscope and three-axis accelerometer, this sensor delivers stable and smooth attitude data even in strong vibration environments.
Built on an advanced MEMS inertial measurement platform with dynamic attitude algorithms, the TL725D provides real-time outputs including dynamic inclination angle, horizontal azimuth angle, three-axis angular rate, three-axis acceleration, and forward-axis body acceleration.
The sensor supports Z-axis single-axis integration, enabling real-time counting feedback to precisely control front-wheel turning for accurate steering in automatic agricultural machinery applications.
Key Features
  • Real-time horizontal azimuth and attitude angle output
  • Real-time angular rate and acceleration output
  • High vibration resistance with excellent long-term stability
  • Forward-axis acceleration feedback for steering accuracy
  • Compact, lightweight, all-solid-state design
  • Wide voltage input: DC 9-36V
  • Long service life and strong reliability
TL725D IP67 Waterproof MEMS Angle Sensor with 0.01deg Resolution for Agricultural Vehicle Navigation TL725D IP67 Waterproof MEMS Angle Sensor with 0.01deg Resolution for Agricultural Vehicle Navigation
Product Specifications
Parameter Specification
Three-axis attitude Azimuth ±180°, Roll angle ±180°, Pitch angle ±90°
Bandwidth >100Hz
Nonlinear 0.1% of FS
Three-axis gyroscope range 250°/s
Angle random walk coefficient (allan) 0.25°/sqrt(h)
Bias stability mg (10s smooth) 8.5°/h
Three-axis acceleration range ±4g
Resolution 0.001g
Accuracy 1mg
Bias instability°/h (allan) 0.05mg
Speed random walk coefficient (allan) 0.015m/s/sqrt(h)
Bias stability°/h (10s average) 0.15mg
Startup time 500ms
Input voltage +9~36V
Current 35mA (12V)
Working temperature -40 ~ +80℃
Storage temperature -40 ~ +85℃
Vibration 5g~10g
Shock 200g pk, 2ms, ½sine
Working life 10 Year
Output frequency 1Hz~200Hz Settable
Output signal RS232 / RS485 (Optional)
MTBF ≥98000 Hours/times
Insulation resistance ≥100MΩ
Shockproof 100g@11ms/3 Axial Direction (Half Sinusoid)
Anti-vibration 10grms/10～1000Hz
Protection grade IP67
Cable Standard 1 m 4 pin shield wire
Weight ≤160g (including 1 meter cable)
TL725D IP67 Waterproof MEMS Angle Sensor with 0.01deg Resolution for Agricultural Vehicle Navigation TL725D IP67 Waterproof MEMS Angle Sensor with 0.01deg Resolution for Agricultural Vehicle Navigation
Applications
  • Automatic agricultural vehicles
  • Precision farming systems
  • Combine harvesters
  • Tractors and other farming machinery
TL725D IP67 Waterproof MEMS Angle Sensor with 0.01deg Resolution for Agricultural Vehicle Navigation TL725D IP67 Waterproof MEMS Angle Sensor with 0.01deg Resolution for Agricultural Vehicle Navigation
